ANTK-SBS-4 | BNC Side-by-Side Rackmounting Antenna Kit for Wireless System

PLEASE NOTE: The new model (bottom hole spacing 5.9 cm) fits ANTK-SBS-4, while the old model (bottom hole spacing 5.4 cm) fits ANTK-SBS. Confirm your model to ensure compatibility.

Maximize Space &  Enhance Performance

The Phenyx Pro Antenna Mounting Kit combines two half-rack wireless systems into a compact 1U unit, optimizing rack space and providing an organized installation solution. Compatible with Phenyx Pro systems such as PTU-71, PTU-1U, PTU-52, PTM-10, and PTM-11, the kit includes short and long metal plates for front-mounting antennas, improving signal reception and flexibility. It comes complete with screws and bulkheads to meet your wireless system’s compact and flexible installation needs.

Feature

- This antenna kit combines two half-rack wireless systems into a 1U unit and mount them together on a rack case.
- Compatible with half-rack wireless systems, including the Phenyx Pro PTU-71/PTU-1U/PTU-52/PTM-10/PTM-11. The PTM-10, PTM-11 and PTU-1U systems come with short metal ears in the original package, allowing for side-by-side mounting of two systems. However, for PTU-71 and PTU-52,  you’ll need to purchase two additional ANTK-HR2A kits to get the short metal ears required for side-by-side rack mounting

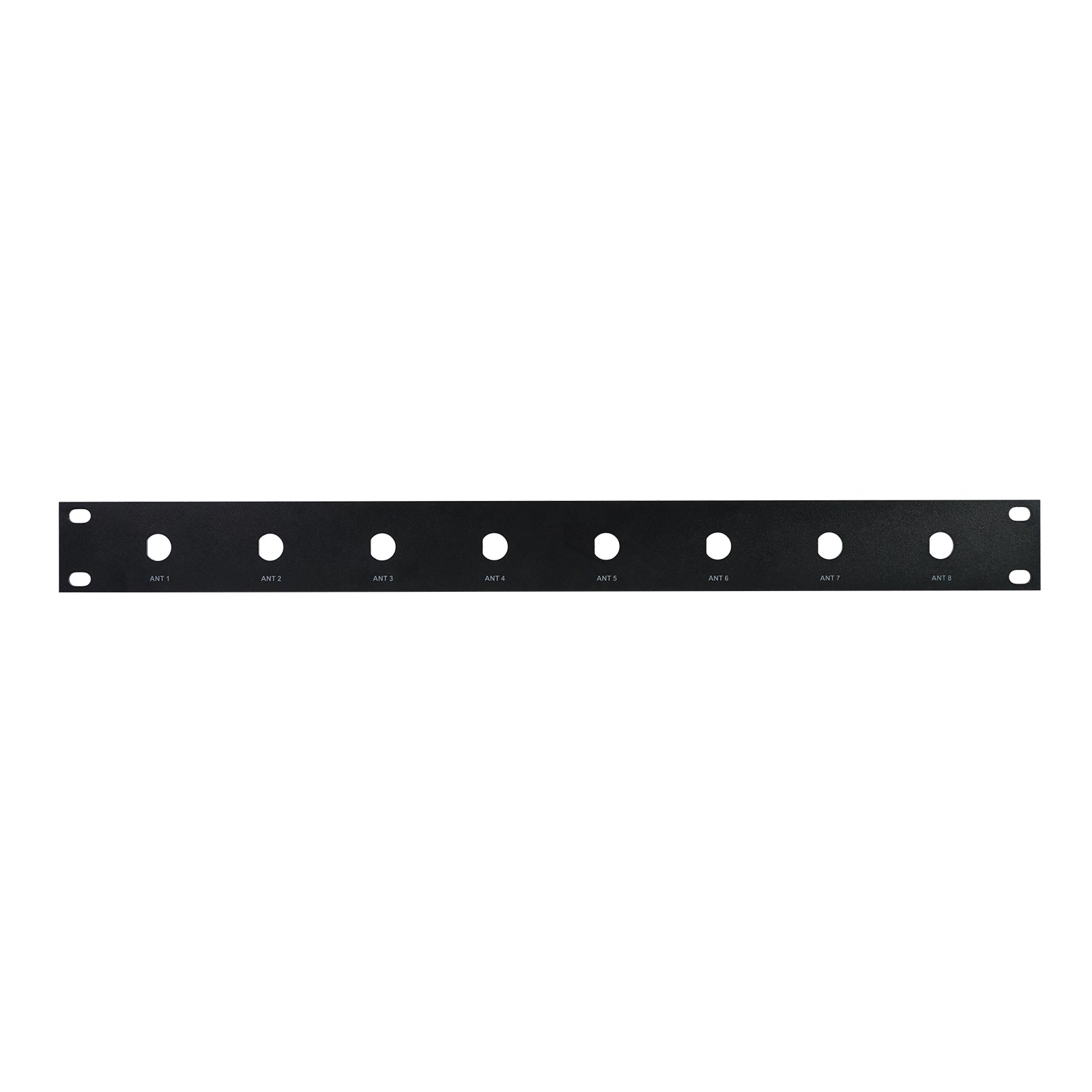

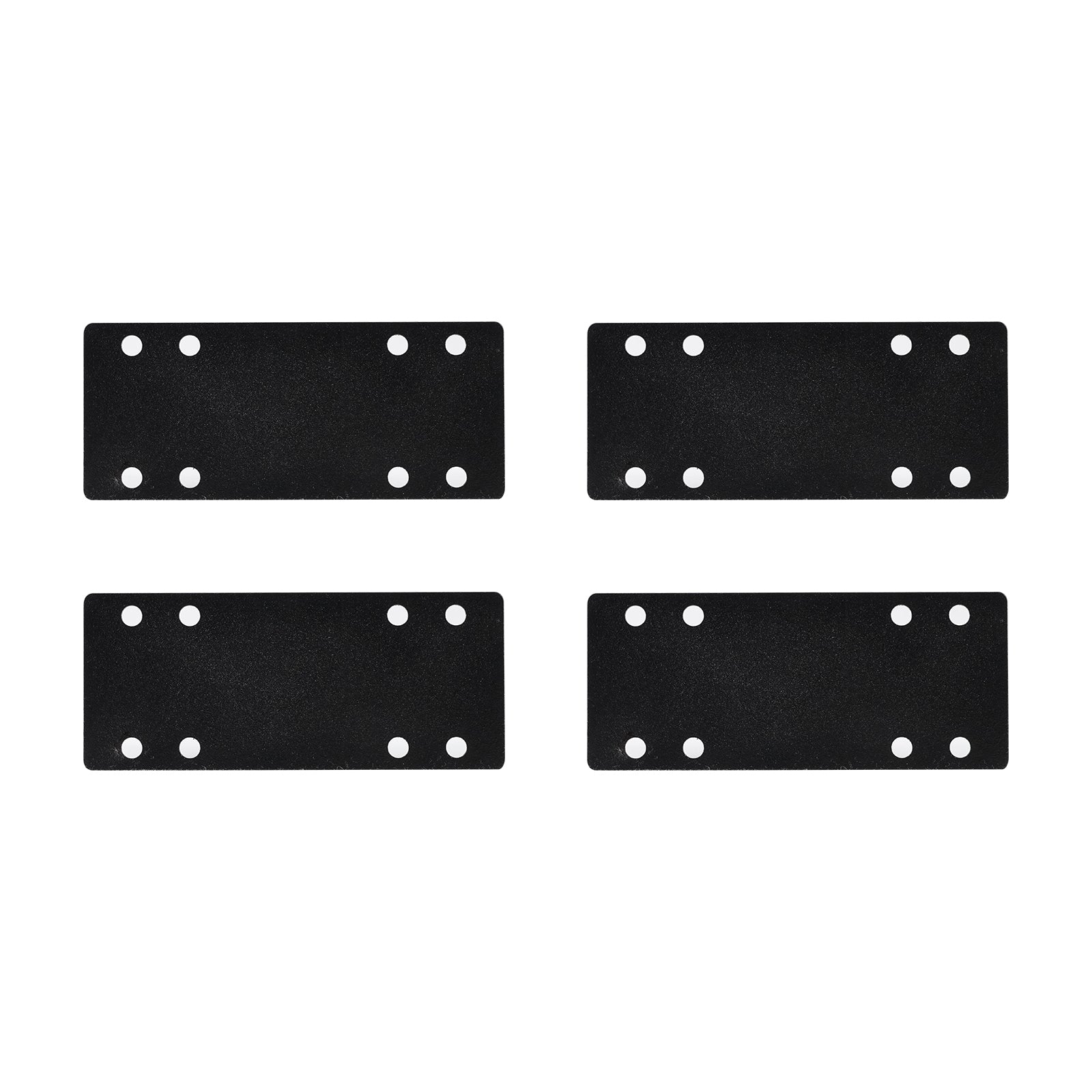

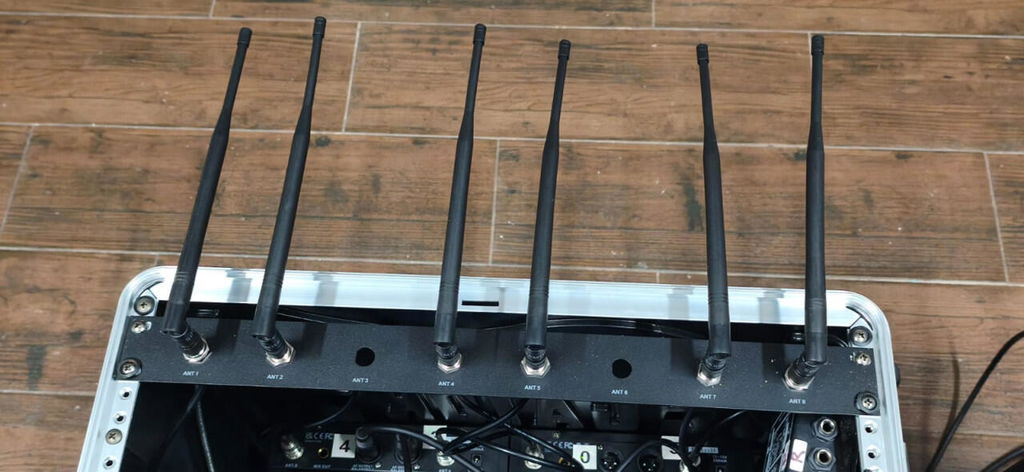

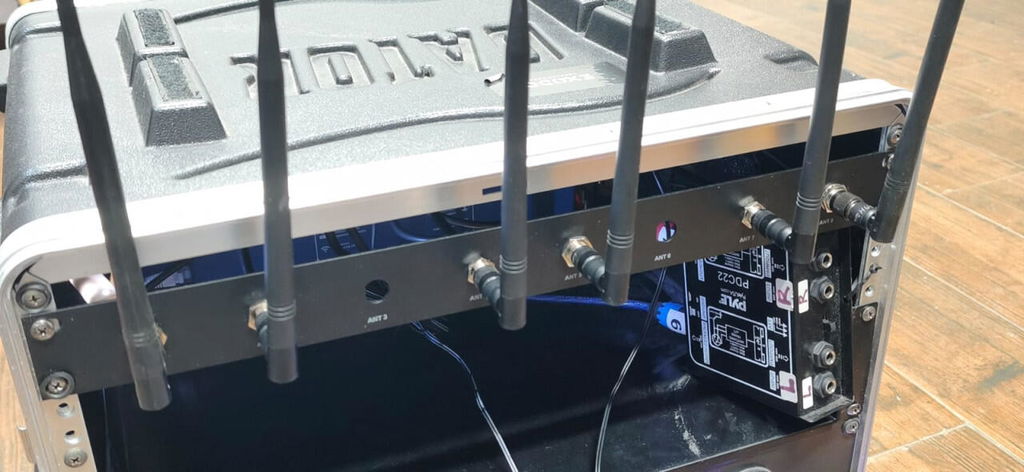

- The short bracket is used to hold up two base units, and the long brackets to front-mount the antennas for better reception and flexibility.  Note: The antenna extension cables are not included, you can purchase the ANTK-CBL additionally

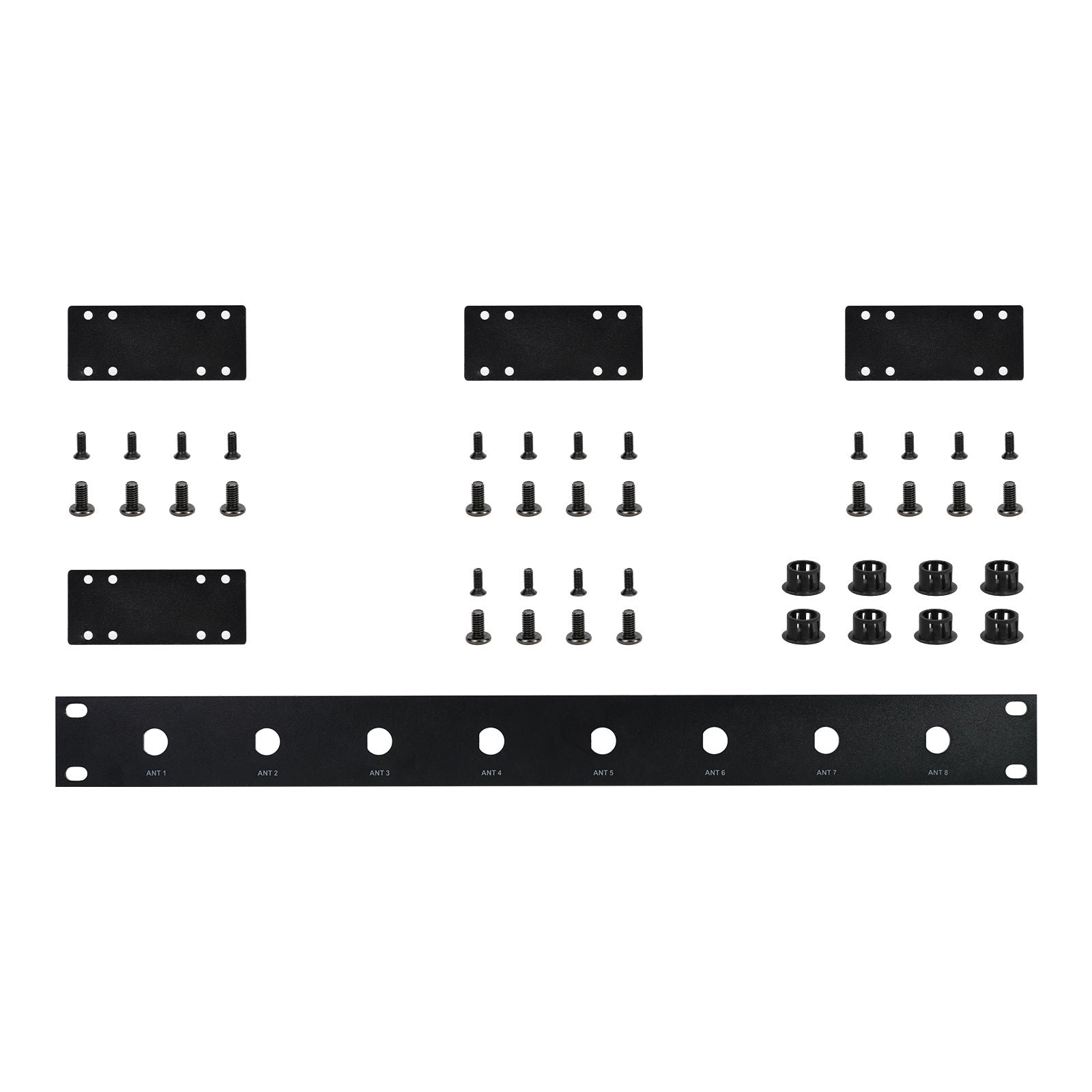

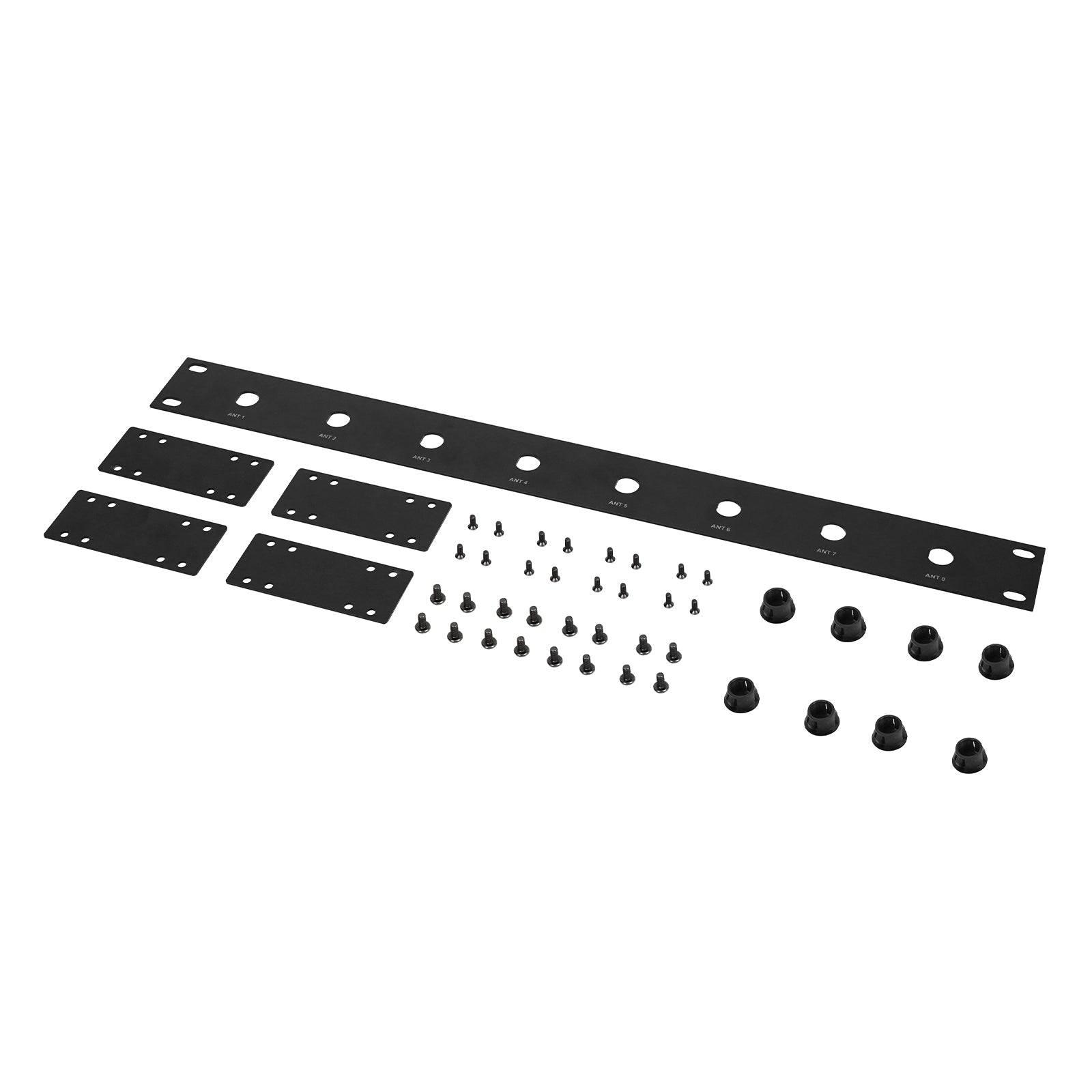

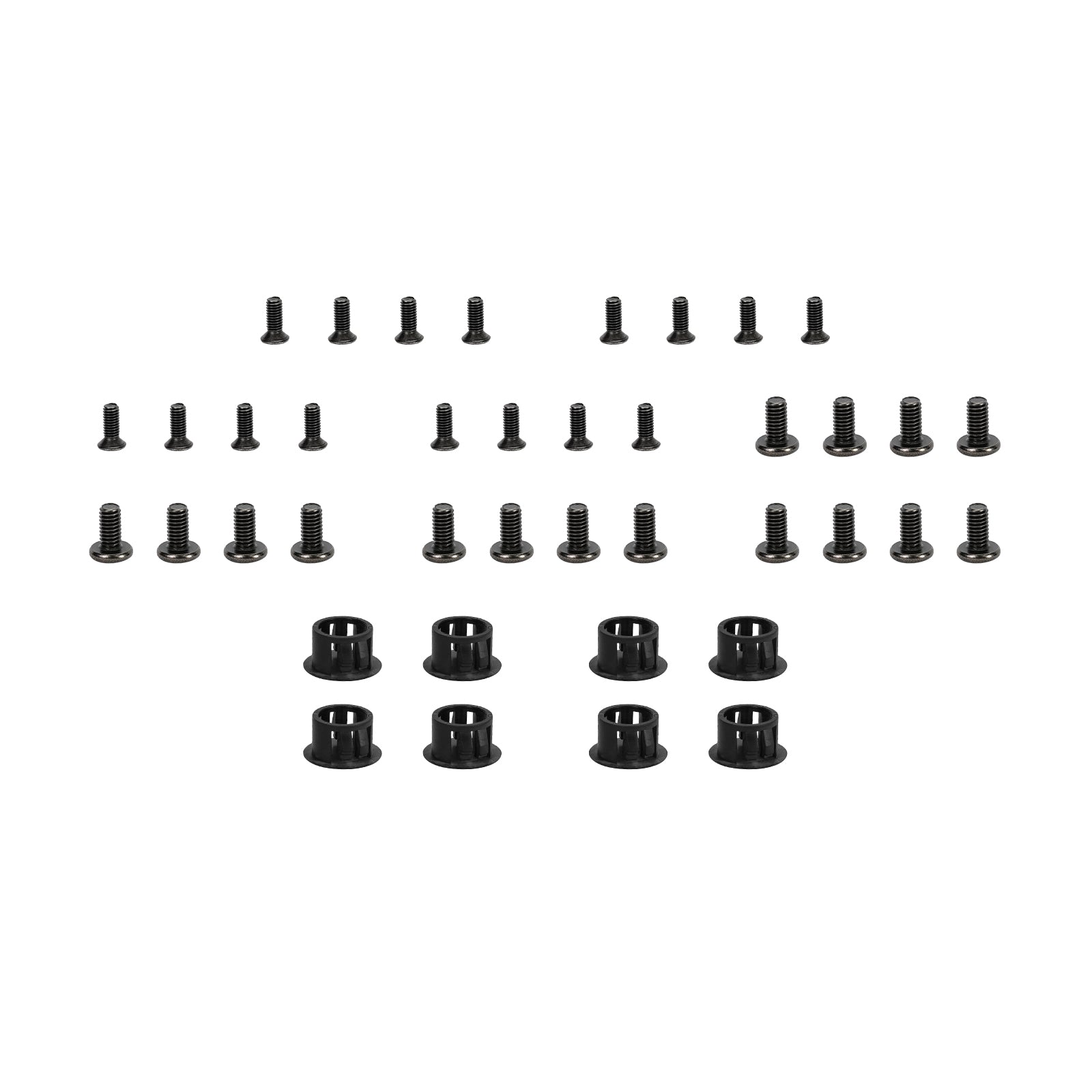

- The kit includes 4 short metal plates, 1 long metal plate, 8 bulkheads, 16 flat head screws, and 16 button head screws.
